Automatic PLC Controlled Ammonia Dissociation Unit With Heat Insulation
Datos del producto:
| Lugar de origen: | Porcelana |
| Nombre de la marca: | KERONG GAS |
| Certificación: | ISO9001 |
| Número de modelo: | ANH,NHP |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 pieza |
|---|---|
| Precio: | negotiable |
| Detalles de empaquetado: | caja de madera |
| Tiempo de entrega: | 8 semanas |
| Condiciones de pago: | LC, T/T, Western Union, MoneyGram |
| Capacidad de la fuente: | 1000pcs por año |
|
Información detallada |
|||
| Nombre: | Unidad de disociación de amoníaco | Catalizador: | Catalizador del níquel |
|---|---|---|---|
| Punto de rocío: | -70℃ | Material: | Acero inoxidable o acero al carbono |
| Capacidad: | Se aplican las siguientes medidas: | Presión: | 0.5 bar o más |
| Resaltar: | PLC controlled ammonia cracker unit,automatic ammonia dissociation unit,heat insulated ammonia cracker |
||
Descripción de producto

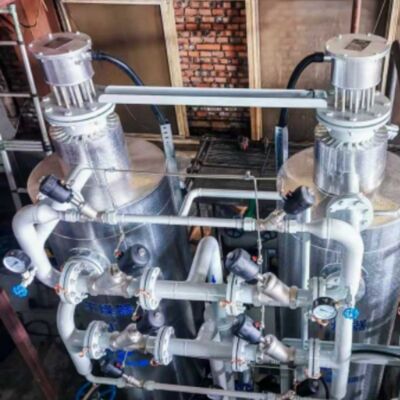

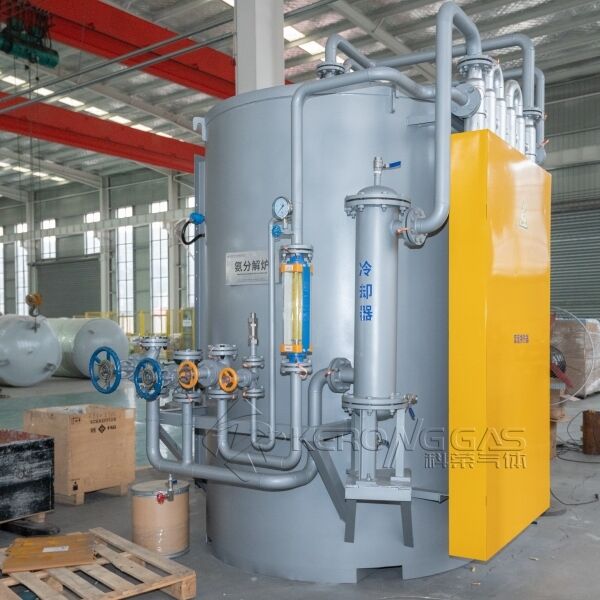

Automatic PLC Controlled Ammonia Dissociation Unit With Heat Insulation
Product description
Our Automatic PLC Controlled Ammonia Dissociation Unit with Heat Insulation is designed to produce high-purity dissociated ammonia gas, consisting primarily of hydrogen and nitrogen, for heat treatment, brazing, annealing, and metallurgical applications. Equipped with an advanced PLC control system, it enables fully automatic operation, precise temperature regulation, and real-time system monitoring for reliable performance. The heat-insulated reactor design minimizes thermal losses, improves energy efficiency, and ensures stable gas production. Constructed with durable, high-temperature-resistant materials, the unit offers long service life and low maintenance requirements. Compact and easy to install, it provides a cost-effective and dependable protective atmosphere solution for industrial processing applications.
Technical Parameters
Capacity: 5-250Nm³/h
Dew point :-70 ℃
Oxygen content: less than 3ppm
Ammonia content: less than 3ppm
| Model | Capacity | Power consumption | Liquid ammonia consumption | Cooling water consumption | Dimensions |
| (Nm3/h) | (KW) | kg/hr | m3/hr | mm | |
| ANH-NHP-5 | 5 | 6.5 | 1.89 | N/A | 1400*1180*1600 |
| ANH-NHP-10 | 10 | 13 | 3.79 | N/A | 1440*1340*1600 |
| ANH-NHP-20 | 20 | 24 | 7.58 | 0.2 | 2200*1435*1800 |
| ANH-NHP-30 | 30 | 34 | 11.36 | 0.2 | |
| ANH-40 | 40 | 36 | 15.15 | 0.25 | 1870*2065*2570 |
| NHP-40 | 40 | 3 | N/A | 1530*880*2010 | |
| ANH-50 | 50 | 44 | 18.94 | 0.25 | 1870*2065*2570 |
| NHP-50 | 50 | 3 | N/A | 1530*860*2010 | |
| ANH-60 | 60 | 52 | 22.73 | 0.25 | 1870*2065*2570 |
| NHP-60 | 60 | 3 | N/A | 1530*860*2010 | |
| ANH-70 | 70 | 58 | 26.52 | 0.42 | 1870*2065*2570 |
| NHP-70 | 70 | 6 | N/A | 1480*900*2050 | |
| ANH-80 | 80 | 64 | 30.30 | 0.42 | 1870*2065*2570 |
| NHP-80 | 80 | 6 | N/A | 1480*900*2050 | |
| ANH-90 | 90 | 88 | 34.09 | 0.65 | 1990*2295*2580 |
| NHP-90 | 90 | 6 | N/A | 1800*1000*2050 | |
| ANH-100 | 100 | 83 | 37.88 | 0.65 | 1990*2295*2580 |
| NHP-100 | 100 | 6 | N/A | 1800*1000*2050 | |
| ANH-110 | 110 | 104 | 41.67 | 0.65 | 1990*2295*2580 |
| NHP-110 | 110 | 6 | N/A | 1800*1000*2250 | |
| ANH-120 | 120 | 104 | 45.45 | 0.65 | 1990*2295*2580 |
| NHP-120 | 120 | 6 | N/A | 1800*1000*2250 | |
| ANH-140 | 140 | 117 | 53.03 | 0.85 | 1990*2295*3078 |
| NHP-140 | 140 | 9 | N/A | 1800*1000*2450 | |
| ANH-150 | 150 | 138 | 56.82 | 0.85 | 1990*2295*3078 |
| NHP-150 | 150 | 9 | N/A | 1800*1000*2650 | |
| ANH-160 | 160 | 138 | 60.61 | 0.85 | 1990*2295*3078 |
| NHP-160 | 160 | 9 | N/A | 1800*1000*2650 | |
| ANH-180 | 180 | 155 | 68.18 | 1.15 | 2290*2620*3100 |
| NHP-180 | 180 | 13.5 | N/A | 2150*1000*2785 | |
| ANH-200 | 200 | 155 | 75.76 | 1.15 | 2290*2620*3100 |
| NHP-200 | 200 | 13.5 | N/A | 2150*1000*2595 | |
| ANH-250 | 250 | 196 | 94.70 | 1.3 | 2520*2775*3150 |
| NHP-250 | 250 | 13.5 | N/A | 2150*1000*2600 |
Factory Certificates
FAQ
Q: Are you a factory or a trading company?
A:We are a factory over 20 years industrial experience.
Q: Do you offer OEM service?
A: Yes, we can customize it as your request.
Q: What is your lead time?
A: About 60~90 days after receiving deposit.
Q: What certificates do you have?
A: We have ASME, CE, ISO9001-2015, ISO13485 for medical oxygen generator. And we can apply for specific certificate for different country such as SONCAP for Nigeria, SASO for Saudi Arabia, etc
Q: What about the warranty?
A: Beyond warranty period(For 12-Months against any manufacturing defect from the date equipment acceptance after commissioning or 18-months from the time of the delivery whichever comes first),supplier will provide spare parts, accessories, easily damaged parts via preferential price.
Q:What service do you offer?
A: Pre-sales service, in-sales service, after-sales service. If you become our local distributor, we can introduce end-customers to purchase from you.
Q:Which port is near to you?
A: Qingdao port or Tianjin port. And we can arrange to deliver Guangzhou, Shanghai, Urumqi, or other Chinese cities, too.
Q:Could you offer Origin Certification.
A: we can do as your request.
