Long service life Pressure Swing Adsorption Oxygen Plant with oxygen monitor
Datos del producto:
| Lugar de origen: | Porcelana |
| Nombre de la marca: | KERONG GAS |
| Certificación: | ISO13485，ISO9001 |
| Número de modelo: | Oficina de la Región |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 unidad |
|---|---|
| Precio: | negotiable |
| Detalles de empaquetado: | CAJA DE MADERA |
| Tiempo de entrega: | 8 semanas |
| Condiciones de pago: | LC, T/T, Western Union, MoneyGram |
| Capacidad de la fuente: | 1000pcs por año |
|
Información detallada |
|||
| Nombre: | Planta del oxígeno de la adsorción del oscilación de la presión | Pureza: | 90% ~ 99,5% |
|---|---|---|---|
| Contenido de aceite: | Sin aceite | material: | Acero inoxidable o acero al carbono |
| Capacidad: | Se aplican las siguientes medidas: | Presión: | Ajustable |
| Resaltar: | PSA medical oxygen generator with monitor,long life PSA oxygen plant,pressure swing adsorption oxygen system |
||
Descripción de producto

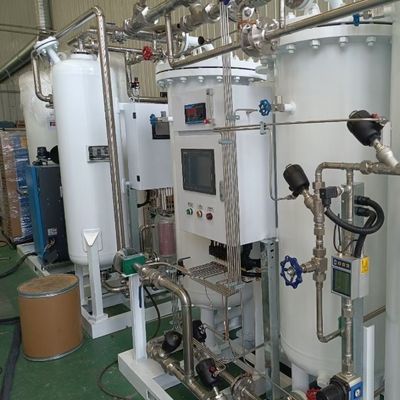

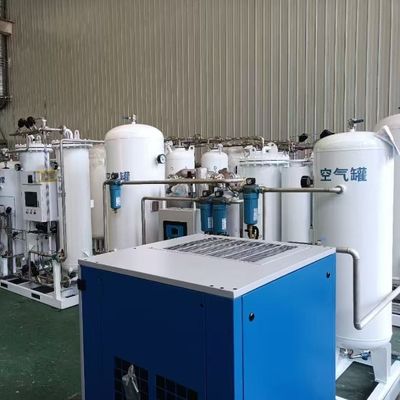

Long service life Pressure Swing Adsorption Oxygen Plant with oxygen monitor
Product description
Our Long Service Life Pressure Swing Adsorption (PSA) Oxygen Plant with Oxygen Monitor is engineered to provide a stable and continuous on-site oxygen supply for medical and industrial applications. Utilizing advanced PSA technology, the system efficiently separates oxygen from compressed air, delivering oxygen purity up to 93–95% with consistent flow and pressure. The integrated oxygen monitor ensures real-time purity tracking and automatic system adjustment for reliable performance and safety. Designed with high-quality molecular sieves and durable components, the plant offers extended service life and low maintenance requirements. Fully automatic, energy-efficient, and skid-mounted for easy installation, this oxygen plant provides a cost-effective alternative to cylinders or liquid oxygen supply.
Technical Parameters
● Purity——93%±3% or with the oxygen purifier can get maximum 99.5%
● Pressure——0.3~0.6 Mpa or with the booster to get 30Mpa or more
● Atmospheric dew point——≤－40℃ or more
| Item | Model | Oxygen flow rate(Nm3/hr) | Purity(%) | Air need(m3/min) |
| 1 | KRO-1-95 | 1 | 95%±1% | 0.25 |
| 2 | KRO-2-95 | 2 | 95%±1% | 0.50 |
| 3 | KRO-3-95 | 3 | 95%±1% | 0.75 |
| 4 | KRO-5-95 | 5 | 95%±1% | 1.25 |
| 5 | KRO-10-95 | 10 | 95%±1% | 2.50 |
| 6 | KRO-15-95 | 15 | 95%±1% | 3.75 |
| 7 | KRO-20-95 | 20 | 95%±1% | 5.00 |
| 8 | KRO-25-95 | 25 | 95%±1% | 6.25 |
| 9 | KRO-30-95 | 30 | 95%±1% | 7.50 |
| 10 | KRO-35-95 | 35 | 95%±1% | 8.75 |
| 11 | KRO-45-95 | 45 | 95%±1% | 11.25 |
| 12 | KRO-50-95 | 50 | 95%±1% | 12.50 |
| 13 | KRO-60-95 | 60 | 95%±1% | 15.00 |
Featured Function
Online monitoring of oxygen purity, pressure, flow rate and dew point.
Unqualified oxygen sound and light alarm, long time alarm automatic stop, unqualified automatic oxygen emptying.
Air dryer and air filters automatic drainer discharge.
Automatic warning of spare parts replacement.
Remote control / fully automatic
Molecular sieve automatic compaction
Pneumatic valve switching by programmable controller automatic control
The IPC, DCS, the specific configuration of other specific programs
Factory Certificates
FAQ
Q: Are you a factory or a trading company?
A:We are a factory over 20 years industrial experience.
Q: Do you offer OEM service?
A: Yes, we can customize it as your request.
Q: What is your lead time?
A: About 60~90 days after receiving deposit.
Q: What certificates do you have?
A: We have ASME, CE, ISO9001-2015, ISO13485 for medical oxygen generator. And we can apply for specific certificate for different country such as SONCAP for Nigeria, SASO for Saudi Arabia, etc
Q: What about the warranty?
A: Beyond warranty period(For 12-Months against any manufacturing defect from the date equipment acceptance after commissioning or 18-months from the time of the delivery whichever comes first),supplier will provide spare parts, accessories, easily damaged parts via preferential price.
Q:What service do you offer?
A: Pre-sales service, in-sales service, after-sales service. If you become our local distributor, we can introduce end-customers to purchase from you.
Q:Which port is near to you?
A: Qingdao port or Tianjin port. And we can arrange to deliver Guangzhou, Shanghai, Urumqi, or other Chinese cities, too.
Q:Could you offer Origin Certification.
A: we can do as your request.
